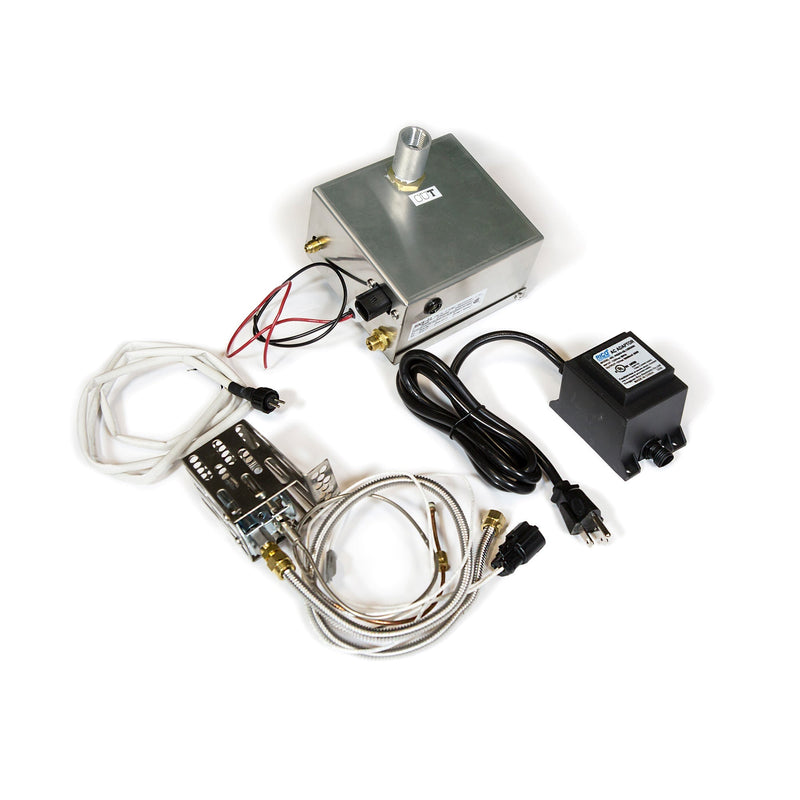

Weather Beater Outdoor Electronic Ignition System - Grand Canyon Gas Logs

Features

• Part Number: WBECS
• Pilot: 24” Pilot Assembly
• On-Demand System: Pilot On-Demand System
• Power: 12V Electronic Ignition / Hot Surface Ignition System
• Operations: On/Off Operations ONLY
• Max Inlet 14” W.C.
• Valve:Valve Temp Rating 175°
• NG:
• LP: 265,000 BTU (NG/LP)

The Weather Beater Electronic Control System utilizes CSA certified components
to be added to an outdoor product.

The Weather Beater gas valve and pilot components feature industry-leading water resistance and CSA certification (229521-1656058) for reliable outdoor performance. All connectors are water resistant, with encapsulated coils protecting against moisture infiltration. The pilot assembly delivers a robust flame pattern that resists wind, while stainless steel pilot injectors ensure corrosion resistance.

The thermocouple is nickel plated for enhanced durability, and the hot surface ignitor (HSI) includes a protective cage for added security in demanding outdoor environments. Every critical connection in this electronic ignition system prioritizes waterproof protection to extend component lifespan. The hot surface ignitor (HSI) connection is fully waterproof, as is the power wire connector, ensuring safe operation in wet conditions and harsh weather. These weather-resistant design features work together to deliver dependable ignition performance for Grand Canyon Gas Logs, making the Weather Beater system an ideal choice for outdoor fire features exposed to moisture, temperature fluctuations, and challenging environmental conditions.

System Information

• Components are CSA Certified.
• 12 vac system to comply to NEC 2014 Article 680 requirements.
• -20° to 175° temperature range.
• Durable connections designed to resist outdoor conditions.
• 265,000 BTU’s at 1" pressure drop.
• TC Flame-sense system.
• Hot Surface Ignitor (HSI).
• LED diagnostics.
• Electronics are ANSI Z21.20-2014 certified.
• I-Flame app is available as an option.

Electronics Information

• Certified ANSI Z21.20-2014
• 12 VAC for installation within 5 feet of water.
• Potted control module to protect against moisture and damage.
• Hot Surface Ignition (HSI), provides stable burner ignition in harsh conditions.
• Thermocouple Flame Sense, fast responding and resistant to wind, moisture and corrosion.
• LED diagnostics for field service and troubleshooting

Product Manuals

Weather Beater Owner's Operation and Installation Manual
