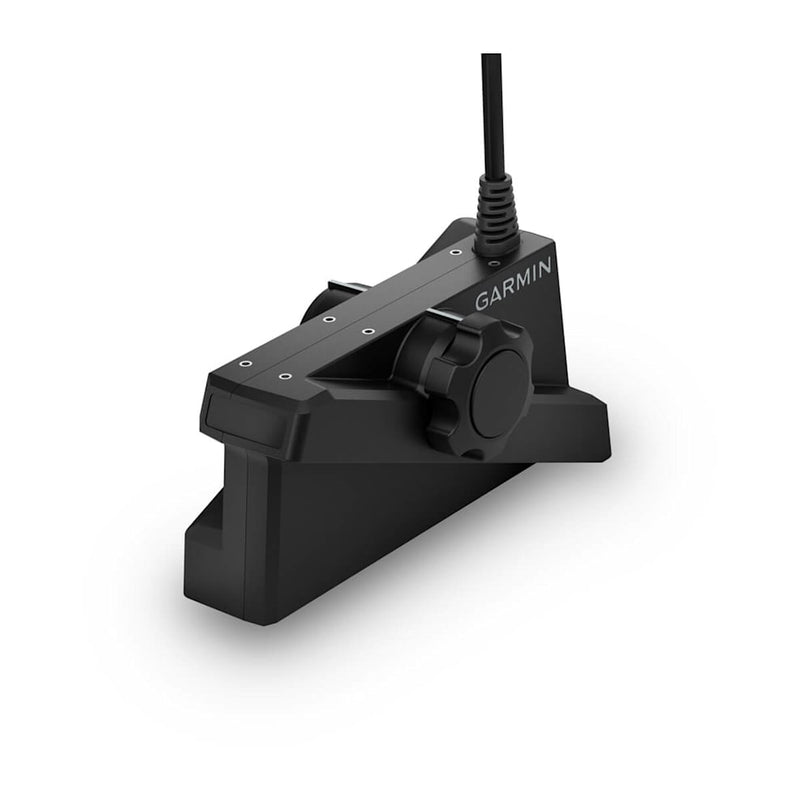

Garmin LiveScope XR LVS62

Garmin LiveScope XR LVS62

A revolutionary fish finder for anglers, the Garmin LiveScope XR LVS62 shows you what’s happening under and around your boat in real time!

With its extended range capabilities, the LiveScope XR allows you to explore the deep with an extended range of up to 500’ in freshwater and 350’ in saltwater. Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.

With its high-resolution display and advanced sonar technology, this fishfinder provides crystal-clear images of everything below the surface, from individual fish to underwater structures and vegetation. It uses a combination of sonar and GPS technology to provide you with a live feed of what's happening below the surface in real time. Get maximum contrast and clarity in your images with vivid color palettes and don’t miss a thing with supported Forward, Down, and Perspective modes plus the necessary mount.

The Garmin LiveScope XR LVS62 is a game-changer in the world of fishing technology, providing unmatched clarity, precision, and real-time scanning capabilities to help you see what's below the surface like never before!

Highlights

•    Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater
•    Find fish circling your boat with clear views close around your hull
•    Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer
•    Get maximum contrast and clarity in your images with vivid color palettes
•    Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount
•    The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.
•    Real-time sonar ensures that your live images are as accurate as possible.
•    A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
•    Choose from seven vivid color options — including aqua, Caribbean, lava, and more — to see fish and structure in maximum contrast and clarity.
•    Scout even farther ahead of your boat to see what’s happening in real-time.
•    Explore live views of the activity deeper beneath your boat.
•    See under the water with a view from your perspective above the water.

SPECIFICATIONS:

General
Transducer beamwidth: 20° x 135°
Transducer cable length: 20 ft
Transducer number of pins: 21
Dimension: GLS 10 sonar black box: 9.7″ x 5.9″ x 2.6″ (24.5 x 14.9 x 6.5 cm);
LVS62 transducer: 8.20″ x 3.98″ x 2.76″ (20.8 x 10.1 x 7.0 cm)
Weight: GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)
Water rating: IPX7
Temperature range: LVS62 Transducer: Operating: 0 C to 40 C

Electrical features
Power Input: 10-32 V
Power usage: 21 W typical, 58 W max
Fuse: 7.5 A
Compass safe distance: 7″ (0.18 m)

Sonar Features
Frequency: 282 - 522 kHz
Transmit power: 500 W
Maximum depth: Freshwater: Down and Forward: 500’ (152.0 m); Saltwater: Down and Forward: 350’ (106.0 m)
Sonar Type: Live
Target Separation @100': 22″
Perspective Mode Mount: Included

Connections
Garmin Marine Network Ports: 1 (small connector)

WHAT’S IN THE BOX:

1 x LiveScope GLS 10 Sonar Black Box

1 x LiveScope XR LVS62 Transducer

1 x Perspective mount (LiveScope XR LVS62 transducer only)

1 x Trolling Motor Barrel Mount

1 x Shaft Mount

1 x Power Cable

1 x 2 Meter Garmin Marine Network Cable (small connector)

1 x Network Adapter Cable

1 x Documentation
