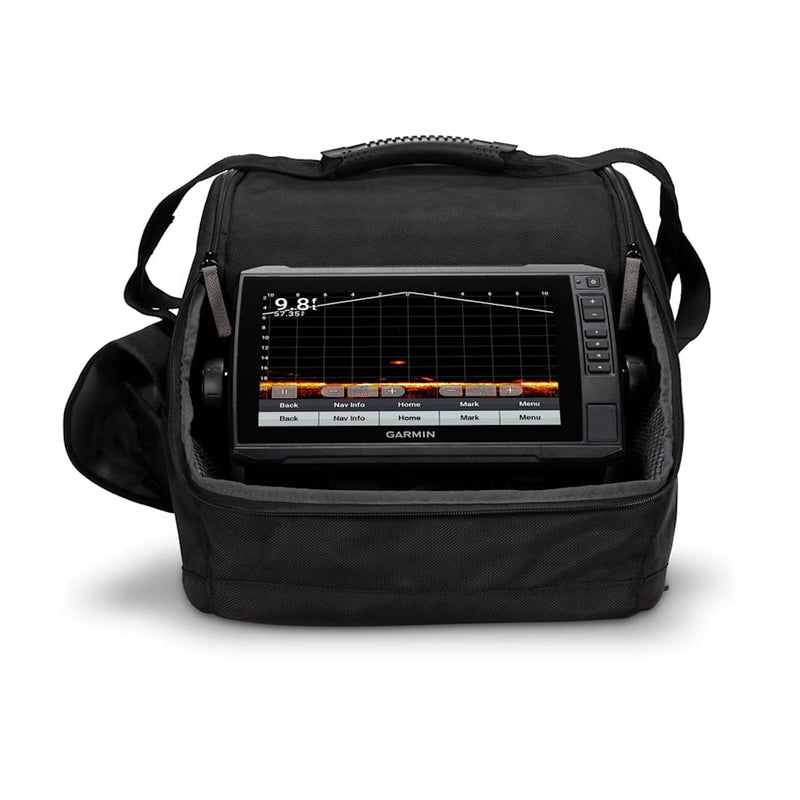

Garmin LiveScope Plus Ice Fishing Bundle LI for US w/ ECHOMAP UHD93sv

Garmin LiveScope Plus Ice Fishing Bundle LI for US w/ ECHOMAP UHD93sv

Revolutionize your ice fishing experience with the Garmin LiveScope Plus Ice Fishing Bundle, which includes an ECHOMAP™ UHD 93sv combo, LiveScope Plus sonar system, and lightweight lithium battery.

This cutting-edge bundle is designed to take your ice fishing game to the next level and ensure you come home with a bountiful catch every time.

Lithium battery- The lightweight lithium battery lets you fish for a longer time without weighing you down on the ice.

LiveScope Forward- This feature shows up to 200’ all around you and below the ice, helping you locate schools of fish so you know where to drill the next hole.

Two modes, one transducer- The LiveScope Plus system offers two live-scanning sonar modes — Down and Forward, with improved resolution, reduced noise, clearer images, and better target separation.

LiveScope Down- It shows live sonar images of what is below the ice, so you can watch fish respond to your jig.

Built-in Flasher- The built-in flasher (requires an accessory purchase) provides accurate jig and fish detection as they swim into the sonar beam.

ECHOMAP UHD Combo- The real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.

Custom Combos- Create custom pages that combine LiveScope Plus sonar, flasher, and map on your display.

Carrying Case - The rugged, portable carrying case lets you easily transport your device from hole to hole and season to season.

LAKEVÜ™ G3 MAPS- Preloaded with LakeVü g3 maps and integrated Garmin and Navionics® data, the kit covers more than 18,000 lakes in the U.S. It also supports Garmin Navionics+™ cartography (sold separately).

The Garmin LiveScope Plus Ice Fishing Bundle shows detailed images of what’s happening beneath the ice in real time, locate schools of fish, tracks their movements, and even watches as they react to your bait.

Upgrade your gear today and get ready to revolutionize your ice fishing experience. Happy fishing!

Highlights

•    Improved resolution
•    Reduced noise
•    Clearer images
•    Better target separation
•    Includes an ECHOMAP™ UHD 93sv combo, LiveScope Plus sonar system, and lightweight lithium battery
•    LiveScope™ Forward mode
•    Portable carrying case
•    Pairs with a large ECHOMAP UHD 93sv combo touchscreen display
•    TWO MODES, ONE TRANSDUCER
•    LiveScope Down sonar
•    LakeVü g3 maps with integrated Garmin and Navionics® data
•    Built-in flasher
•    Custom combos
•    Lithium battery
•    Carrying case

SPECIFICATIONS:

General
Physical dimensions: 13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)
Display size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution: 800 x 480 pixels
Display type: WVGA display
Weight: 28.0 lbs (12.7 kg)
Water rating: IPX7
Power consumption: 6.2 W
Antenna: Internal or external over NMEA 2000™
Transmit power:    500 W
Receiver: 5 Hz
Garmin Marine Network Ports: 1 Panoptix™ port

Outdoor Recreation
Tide tables: yes

Chartplotter Features
Garmin sonar compatible: yes

Sonar Features
Frequencies supported: 530 - 1,100 kHz
Maximum depth: Down and Forward: 200’ (61.0 m)
Bottom Lock (shows return from the bottom up): yes
Water temperature log and graph: yes
Sonar recording: yes
Sonar history rewind: yes

Connections
NMEA 2000 compatible: yes
Transducer PINs: 21
NMEA 0183 input ports: 1
NMEA 0183 output ports: 1
Wireless connectivity: yes

Battery Specs
Type: 16.5 Ahr Lithium-ion
Weight: 3.4 lbs
Runtime (0°C 100% backlight): 11.4 hrs

Additional
Bag size: Extra large (XL)
Included transducer: Panoptix LiveScope Plus System

WHAT’S IN THE BOX:

1 x ECHOMAP™ UHD 93sv Chartplotter

1 x LiveScope Plus System

1 x Zero Degree Mount

1 x LiveScope ice fishing mount

1 x Tilt/Swivel mount

1 x Power Cable

1 x Documentation

1 x Portable Fishing Kit- 1 x Bag with Handle;  1 x Lithium-ion Battery; 1 x Battery Charger
