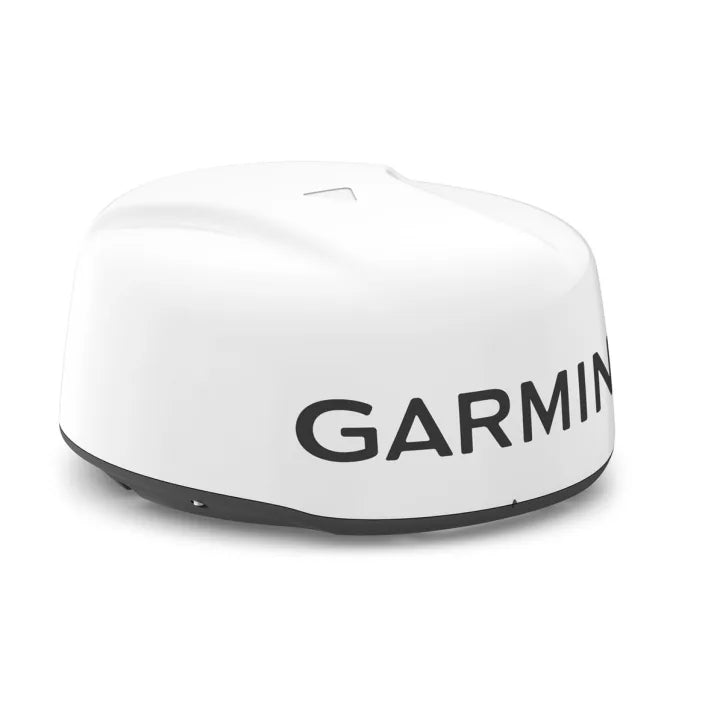

Garmin GMR 24 xHD3

Garmin GMR 24 xHD

GMR 24 xHD3 is a robust magnetron scanning dome radar, compact in size yet loaded with advanced features typical to open arrays to conquer the open expanse of water with confidence.

COMPACT AND POWERFUL

Achieve superior traffic, weather and obstacle detection on the powerful 4kw output radar covering a good 48-nautical mile range max.

HIGH RESOLUTION DUAL RADAR SUPPORT

GMR 24 negates redundancy as the dual radar support allows each high-resolution display to pull data from two different sources via narrow horizontal beamwidth and high antenna gain to even pick out targets from considerable distance.

NEW SCAN AVERAGING TECHNOLOGY

A very first for Garmin magnetron radar, the scan average tech enhances detections and precision display of consistent targets by filtering out sea clutter and other interferences.

IMPROVED TARGET SIZE PROCESSING

On-screen object shapes are optimized for better interpretation thanks to the pulse expansion and angular target-size processing of GMR 24.

Highlights:

• Split-screen dual-range display
• Bird detection
• Quiet dome drive motor
• True echo trails to identify moving targets and potential collision threats
• Dynamic auto gain adjusts for harbors, near shore and off shore in open waters
• Dynamic sea filter adjusts sea clutter for calm, medium and rough conditions
• Variable range markers, electronic bearing lines to rapidly measure distances between vessels and land
• Guard zone with alarm to alert in case of breach
• Marpa target tracking

Specifications:

Dimension: 25.4 x 9.8 in.

Weight: 19.18lbs

Water rating: IPX7

Antenna Length: 23"

Rotation speed (RPM): Up to 60 rpm, depending on settings

Beam width: 3.7° horizontal, 25° vertical

Maximum range: 48 nm

Minimum range: 20 meters

Radar type: Radome

Electrical Features

Power Input: 11-32 V DC

Power Consumption (standby): 15 W

Typical power consumption, transmitting (normal mode): 40 W

Transmit power: 4 KW

Radar Features

Dual range: Yes

Overlay: Yes

Dual radar support: Yes

Auto Bird Gain: Yes

Auto Gain: Dynamic

MARPA target tracking: yes (requires heading sensor, sold separately)

Echo Trails: True

Target size: Yes

Scan averaging: Yes

What's in the Box:

1 x GMR 24 xHD3 dome radar

1 x Power cable (15 m/49.21 ft)

1 x Network cable (15 m/49.21 ft)

1 x Mounting hardware kit and template

1 x Installation instructions
